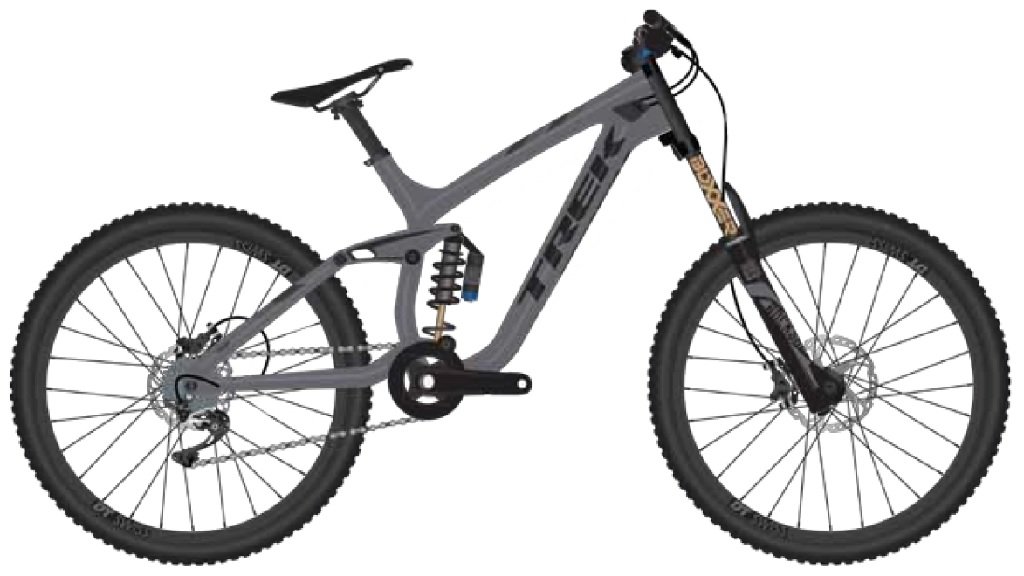

Sizes S, M, L, XL
Frame Alpha Platinum Aluminium, ABP, Full Floater,
EVO Link, E2 tapered head tube, Mino Link, integrated
frame protection, internal control routing, MicroTruss,
downtube guard, ISCG Mount, 210mm travel
Front suspension RockShox BoXXer RC, coil spring
(S, M red; L, XL blue), low speed compression,
internal preload, Motion Control IS, 20mm Maxle DH,
200mm travel
Rear suspension RockShox Kage RC, coil spring,
rebound, adjustable hydraulic compression damping,
(S 400 lb; M 450 lb; L 500 lb; XL 500 lb spring),
tuned by Trek Suspension Lab, 8.75x2.75"
Shifters SRAM GX DH, 7-speed
Rear derailleur SRAM GX DH, Roller Bearing Clutch
Cassett e SRAM PG-720, 11-25, 7-speed
Crank Truvativ Descendant, 36T
Pedals Wellgo BO-87B, alloy body, Cro-Mo axle,
replaceable pins
Wheels DT Swiss FR2150, 110x20 front, 157x12 rear
Tyres Bontrager G4 Team Issue, 27.5x2.35"
Saddle Bontrager Evoke 2, chromoly rails
Seatpost Bontrager Rhythm Elite, 2-bolt head, 31.6mm,
zero offset
Handlebar Bontrager Rhythm Elite, 31.8mm,
15mm rise
Stem Bontrager Direct Mount, 31.8mm
Headset FSA Orbit, sealed cartridge bearing, 1-1/8"
top, 1.5" bottom
Brakeset SRAM Guide R hydraulic disc
Key Features
••Fast 27.5 wheels get you down the
mountain first
••Exclusive suspension tech with ABP and
Full Floater
••Mino Link adjustable geometry lets you fine
tune your ride
••Internal routing and integrated
frame protection
